Products & Equipment

Engineered for the cement pyro-line and everything around it

From the preheater to the cooler, plus the mill internals, spares, material handling and structures that keep the plant running. Standard and fully custom, engineered to your operating conditions and inspected at source.

Equipment families

Cement pyro-process equipment

Preheater cyclone tower

Preheater & cyclones

A multi-stage cyclone tower that heats raw meal in counterflow with hot kiln gases. ETR raises separation efficiency, reduces pressure drop and cuts specific fuel consumption, validated with CFD where performance is critical.

Applications
  • Top-cyclone modification and optimisation
  • Pressure-drop and false-air reduction
  • Separation-efficiency improvement
  • As-built reconstruction via 3D scanning
Enquire Now about Preheater & cyclones
Calciner vessel with tertiary air duct

Calciner

The fuel-fired vessel between preheater and kiln where most limestone calcination is completed. ETR designs extensions and top-stage modifications to add capacity, enable alternative-fuel firing and improve specific fuel consumption.

Applications
  • Calciner extension for AF capacity
  • Top-stage and feed-pipe modification
  • Tertiary-air and combustion optimisation
  • NOx-mitigation concepts
Enquire Now about Calciner
Rotary kiln with riding rings and drive

Rotary kiln & components

The kiln forms clinker at 1400 to 1500 degrees C. ETR engineers reliability and safety upgrades and supplies shell, tyres, support and thrust rollers, girth gear and pinion, seals and drive components, including reverse-engineered spares for legacy kilns.

Applications
  • Girth-gear guard design and safety upgrades
  • Support-roller, tyre and shell components
  • Kiln inlet and outlet seals
  • Reverse-engineered girth gear and pinion
Enquire Now about Rotary kiln & components
Clinker cooler at a cement plant

Clinker cooler & AQC duct

The cooler rapidly cools clinker and recovers secondary air to the kiln and tertiary air to the calciner. ETR modifies coolers and redesigns air-quench-cooler ducts to resolve recurring failures from improper expansion-joint and support placement.

Applications
  • AQC duct redesign and support correction
  • Cooler modification and refractory detailing
  • Expansion-joint placement engineering
Enquire Now about Clinker cooler & AQC duct

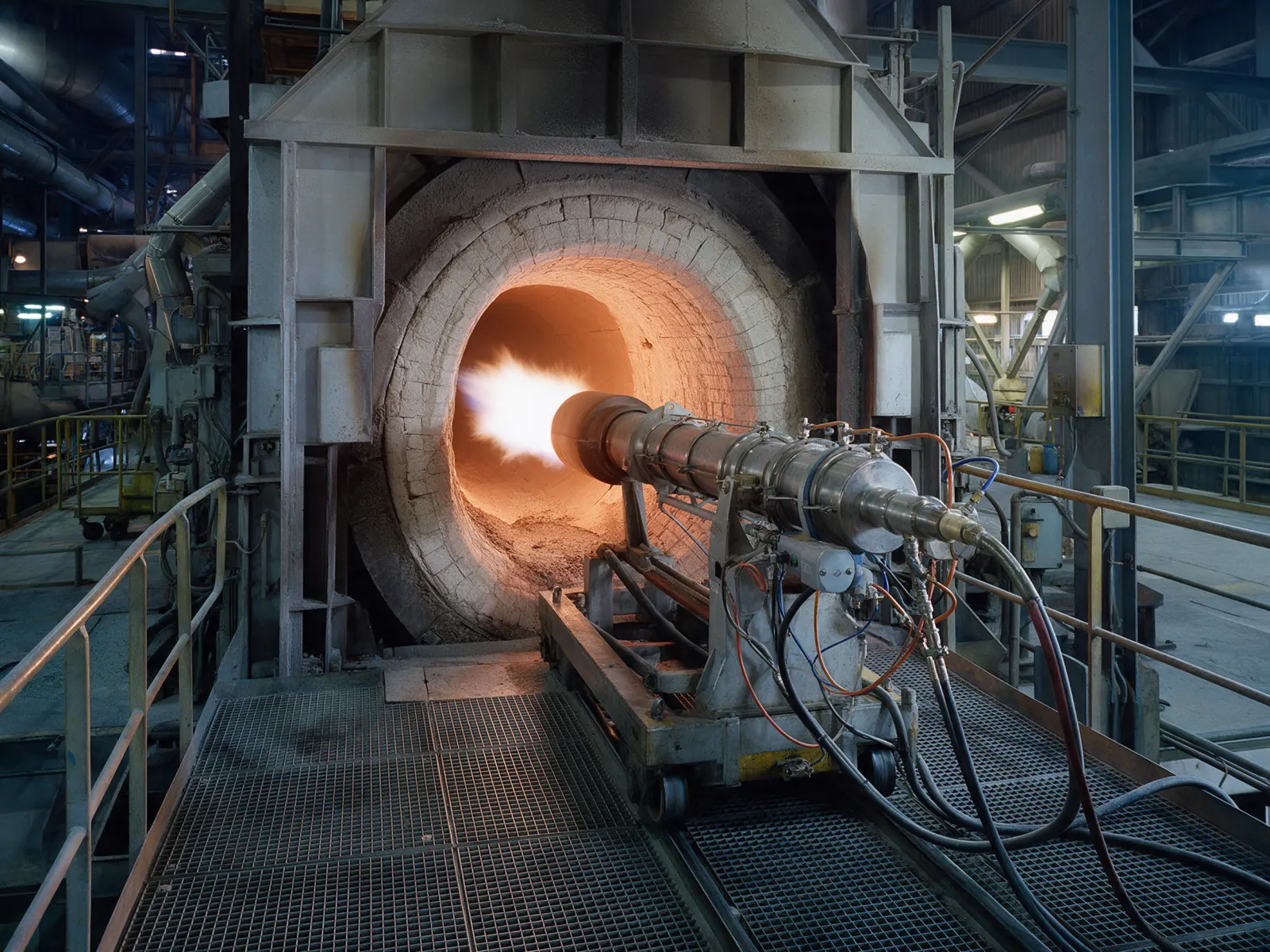

Multi-channel kiln burner entering the kiln hood

Kiln burner

The burner fires the main flame at the kiln outlet, mixing fuel with primary and secondary air. ETR provides burner modification and heat-exchanger design for fuel flexibility, flame shaping and alternative-fuel firing.

Applications
  • Burner modification for fuel flexibility
  • Heat-exchanger design
  • Alternative-fuel firing support
Enquire Now about Kiln burner
Fabricated duct section being lifted onto a preheater

Ducts, columns & expansion joints

Downcomer, tertiary-air and AQC ducts, preheater columns and the metallic and non-metallic expansion joints that absorb thermal movement across the pyro-line, engineered and supplied to specification.

Applications
  • Downcomer, TAD and AQC ducts
  • Preheater columns and supports
  • Metallic and non-metallic expansion joints
Enquire Now about Ducts, columns & expansion joints

Alternative fuel firing

Shredded alternative fuel on a conveyor to the calciner

AF firing systems

Complete systems that reduce fuel cost and emissions, from feasibility and flowsheet through feeding, storage and firing. ETR has taken plants from no AF firing to meaningful substitution and an improved thermal substitution rate.

Applications
  • AF feasibility and flowsheet design
  • Solid-waste and liquid firing systems
  • Feeding, storage and conveying
  • Calciner firing enablement
Enquire Now about AF firing systems

Kiln components & mill internals

Kiln riding ring resting on a support roller

Kiln components

Critical rotating and wear components that keep kilns available, fabricated through vetted partner plants and inspected at source.

Components
  • Shell
  • Tyres (riding rings)
  • Support and thrust rollers
  • Girth gear and pinion
  • Seals
  • Drive components
Enquire Now about Kiln components

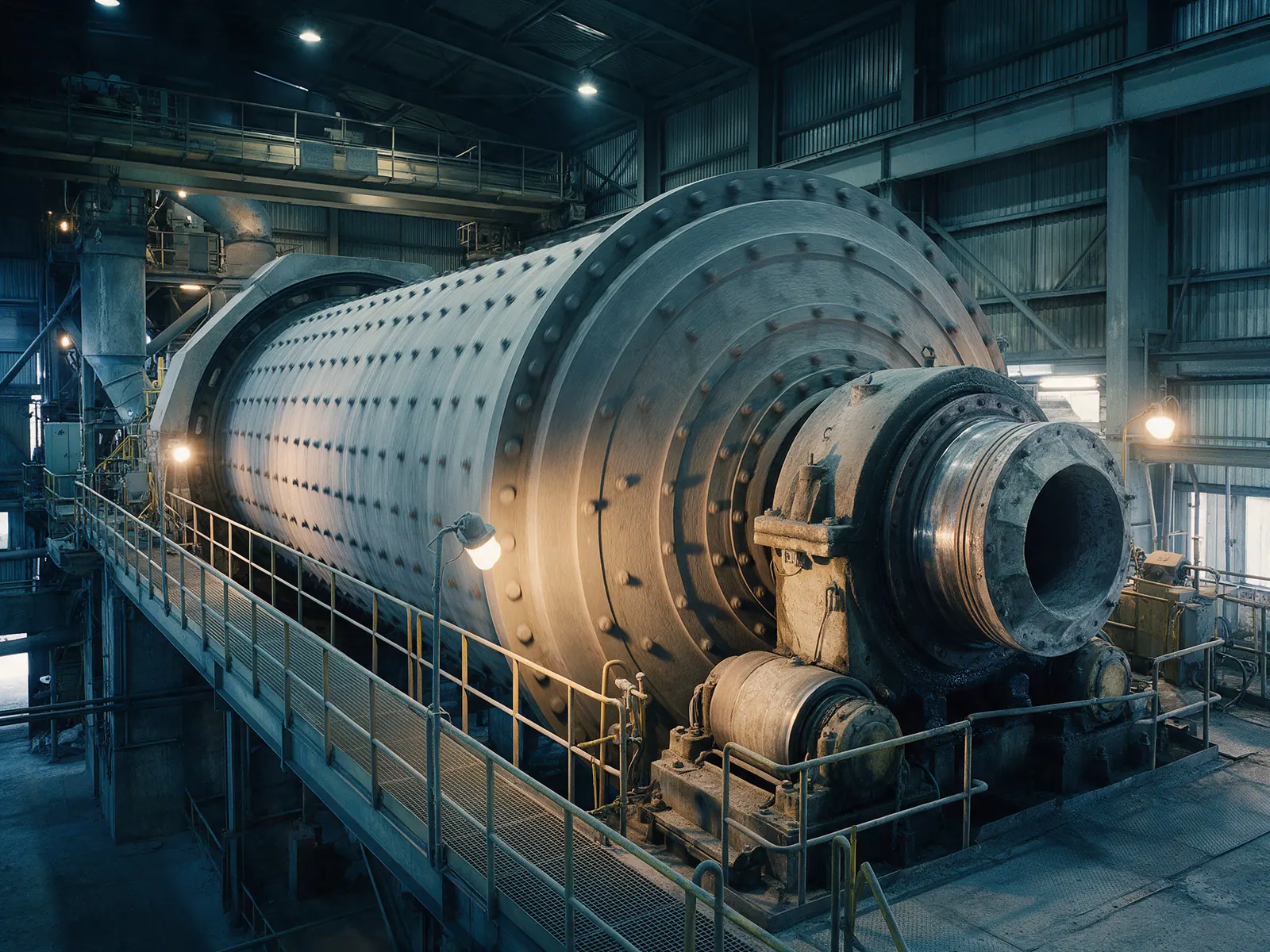

Ball mill with trunnion head and slide-shoe bearing

Mill internals

Wear and rotating assemblies for ball mills and VRMs, sourced to drawing and inspected before despatch.

Components
  • Trunnion with mill head
  • Slide-shoe bearing assembly
  • Stuffing-box assembly
  • Ball mill and VRM internals
Enquire Now about Mill internals

Air & gas handling, gates & valves

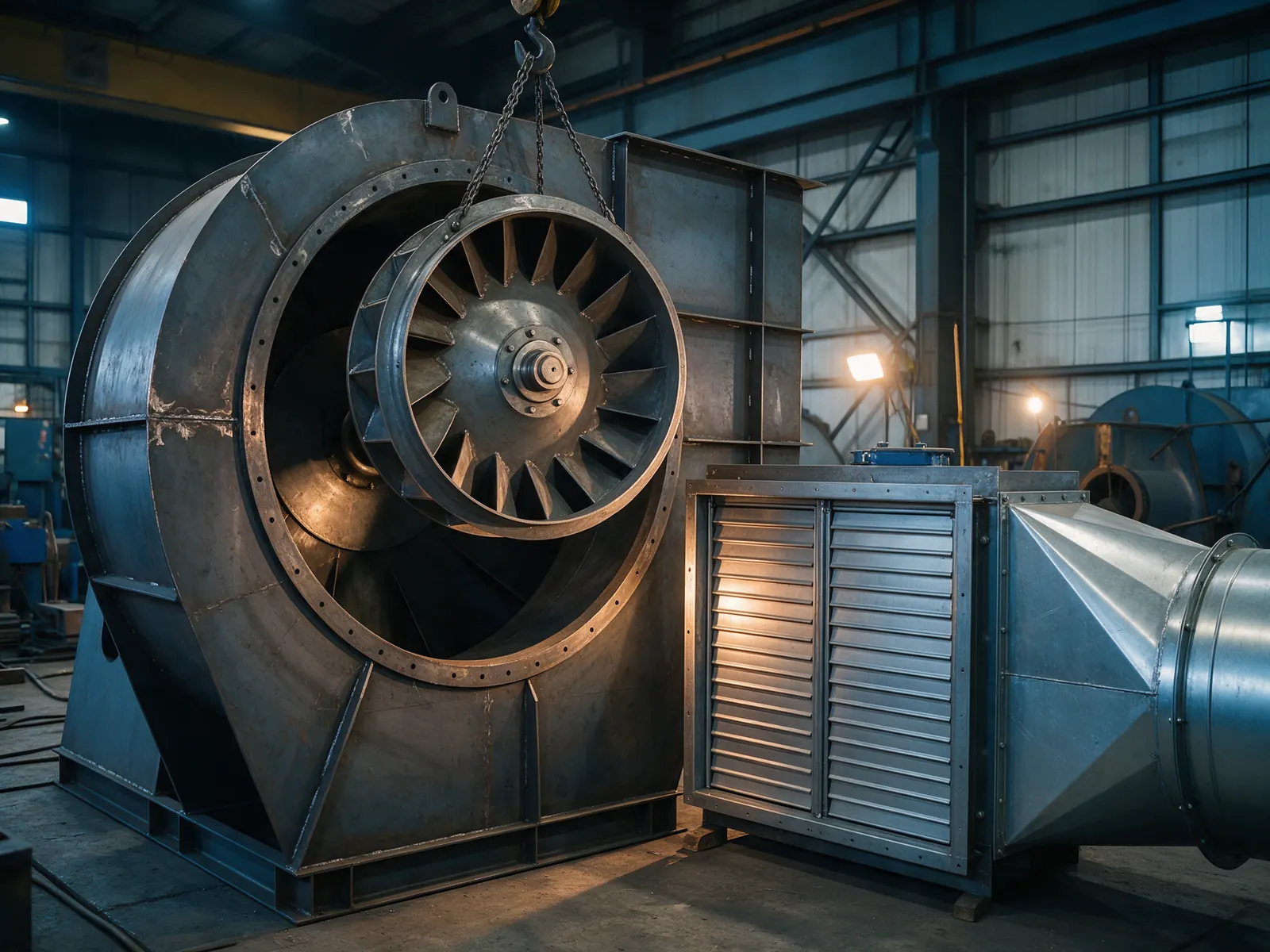

Industrial fan impeller being fitted into its casing

Air & gas handling

Equipment that moves and controls process air and gas through the plant.

Equipment
  • Fans and blowers
  • Louver and TAD dampers
  • Ducts and columns
  • Bag filters
  • Tunnel ventilation
Enquire Now about Air & gas handling
Dome valve and shut-off gate on skids

Gates & valves

Flow-control equipment for bulk material and gas lines, built to specification.

Equipment
  • Shut-off and butterfly valves
  • Dividing and change-over gates
  • Flap and dome valves
  • Discharge gates
  • Expansion joints
Enquire Now about Gates & valves

Material handling & conveying

Belt conveyor at a cement plant

Conveying systems & components

Complete mill-feed and clinker or slag conveying systems, engineered mechanically and civilly, and supplied as an integrated line.

Scope
  • Belt and pipe conveyors
  • Bucket elevators and surface feeders
  • Vibro feeders
  • Belt weighers and discharge gates
  • Drag and DPC conveyors
  • Head, tail, beater and deflector pulleys
  • Bag filters and tunnel ventilation
Enquire Now about Conveying systems & components

Structural steel & civil

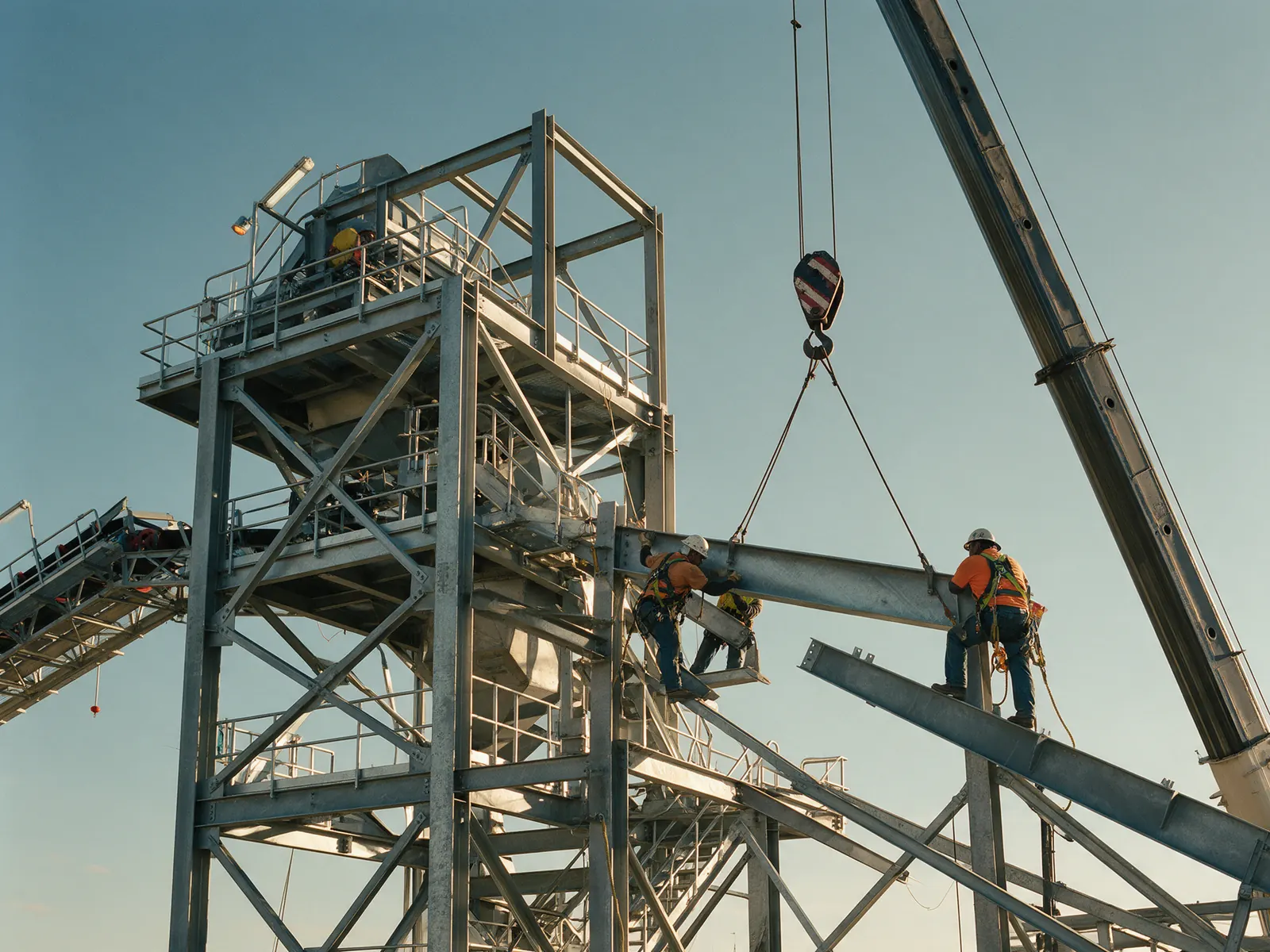

Steel erectors bolting a beam onto a transfer tower

Structures that carry the plant

Design, fabrication and erection of the structures that carry and house plant equipment, from preheater columns to conveyor galleries, with third-party approval available.

Scope
  • Preheater columns and equipment supports
  • Conveyor galleries
  • Trestles and transfer structures
  • PEB, industrial and storage sheds
  • Access platforms, walkways and staircases
  • Structural fabrication supply such as 650 MT of conveyor structures
Enquire Now about Structures that carry the plant
